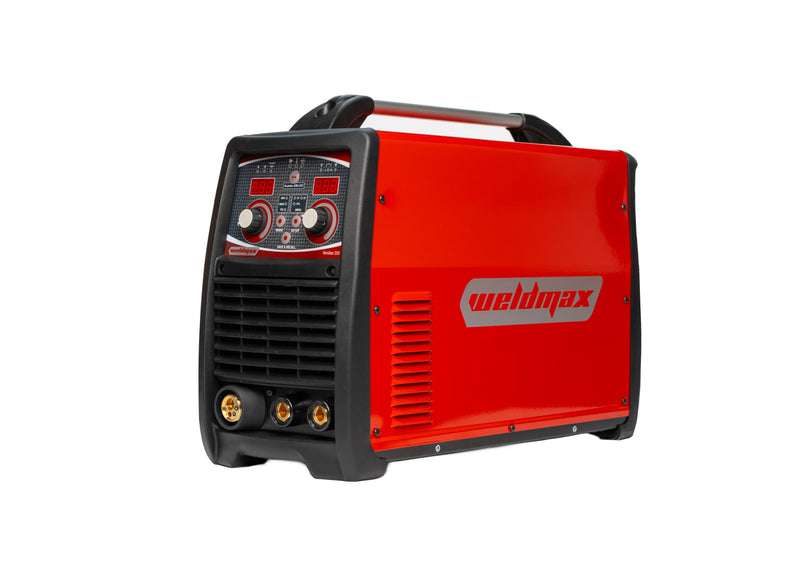

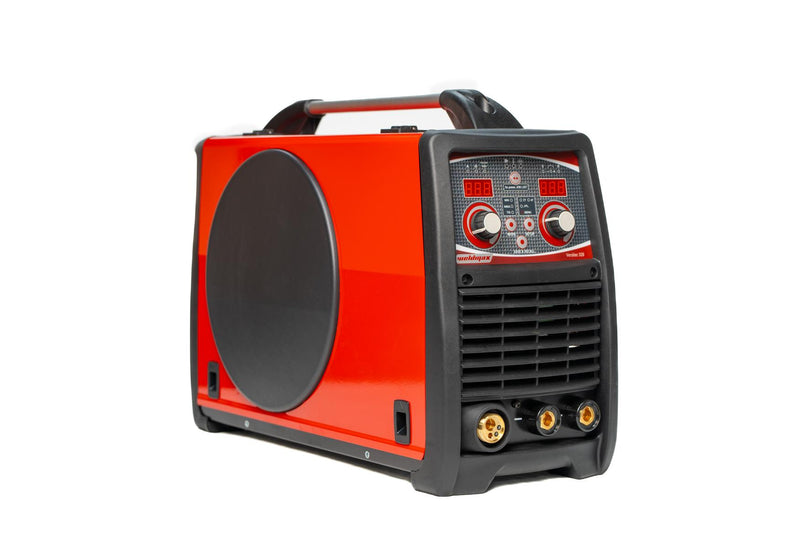

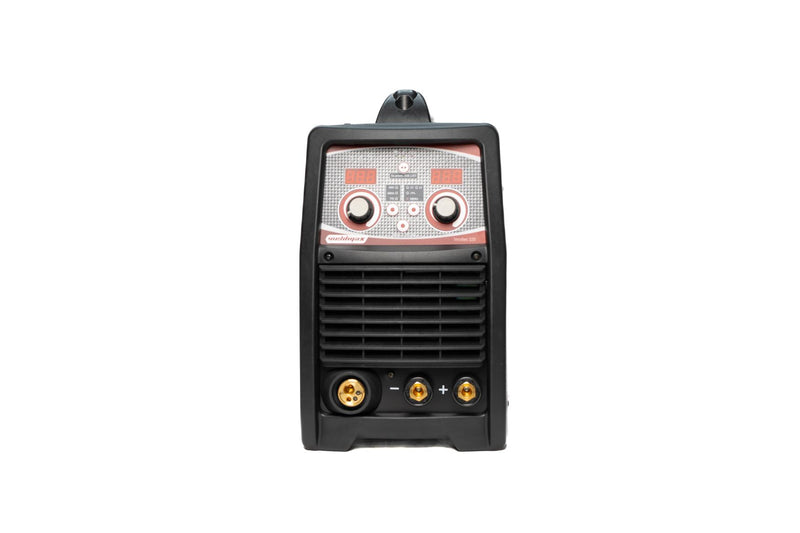

WELDMAX VERSITEC 320 COMPACT MULTIPROCESS INVERTER MIG

DESCRIPTION

The VERSITEC range has been created to simplifying the adjustment of the welding parameters, facilitating the welder’s job. Each function and parameter can be easily managed and configured thanks to the simplified control panel. VERSITEC machines are designed to be used in Manual MIG mode. However, synergic programs can be activated and selected from the front panel. Thanks to the high Duty Cycle and the user-friendly control panel, the WELDMAX VERSITEC range is the perfect replacement for the “old” generation transformer welding machines. The innovative “SPEED SPOT” function, available on all WELDMAX VERSITEC versions, guarantees perfect spot welding in MIG mode on any material. The WELDMAX VERSITEC range already complies with the new regulations for Eco Design standards.

FEATURES

• 3 Phase

• Ecodesign ready

• Fan on demand

• Power generator friendly

• Line voltage compensation

• Display

• Set & Weld

• MIG/MAG welding

• 2/4 stroke

• Synergic settings

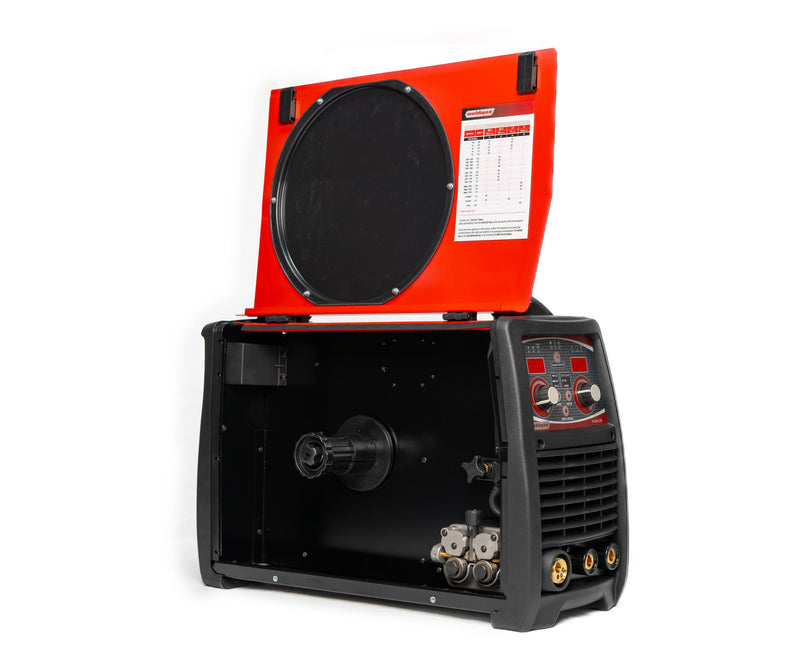

• Metallic wire feeder 4 rolls

• Gas/Gasless

• 15kg max spool wire capacity

• Burn back time

• Slope of the motor

• Speed spot

• MMA arc welding

• Adjustable air force

• Adjustable hot start

• Anti sticking function

• Rutile/Basic electrodes

• TIG welding

• Lift Arc

APPLICATIONS

• Light Industry

• Farming

• Service /Maintenance

• Shipyard

• Automotive

Technical Data:

Input voltage (3ph)	400V - 50/60Hz
Power 60%	9,0 KVA	9,1 KVA	9,1 KVA
	MIG	MMA	TIG
No load output voltage	45 V	70 V	70 V
Amp. min-max	30 ÷ 320 A	20 ÷ 270 A	10 ÷ 320 A
Duty Cycle 40°	320A @ 40% 270A @ 60% 200A @ 100%	270A @ 45% 250A @ 60% 180A @ 100%	320A @ 40% 270A @ 60% 200A @ 100%
Steel	0,8 ÷ 1,2 Ø mm
Stainless steel	0,8 ÷ 1,2 Ø mm
Aluminium	0,8 ÷ 1,2 Ø mm
Flux core	0,8 ÷ 1,2 Ø mm
Brazing	0,8 ÷ 1,0 Ø mm
E  Ø		1,6 ÷ 6 Ø mm
Electrode type	6013 - 7018 - CrNi
Insulation	H
Protec. Degree	IP23S
Machine (LxWxH)	250x610x440 mm
Package (LxWxH)	295x765x505 mm
Weight box/net	30,2 / 28,55 Kg
Code	WEMS320V
