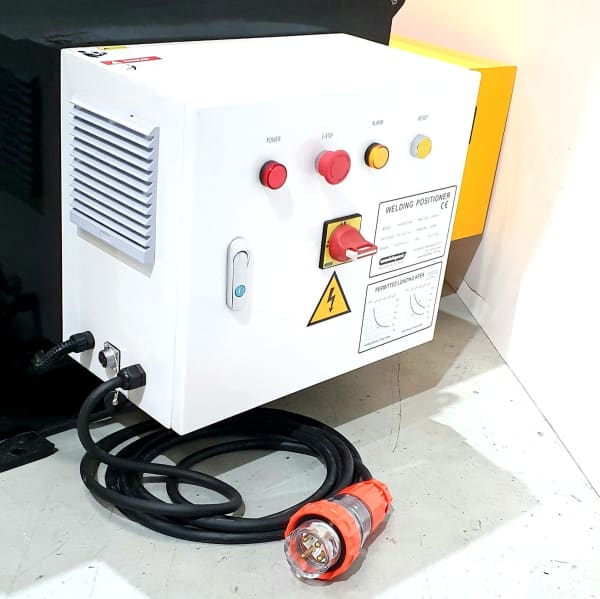

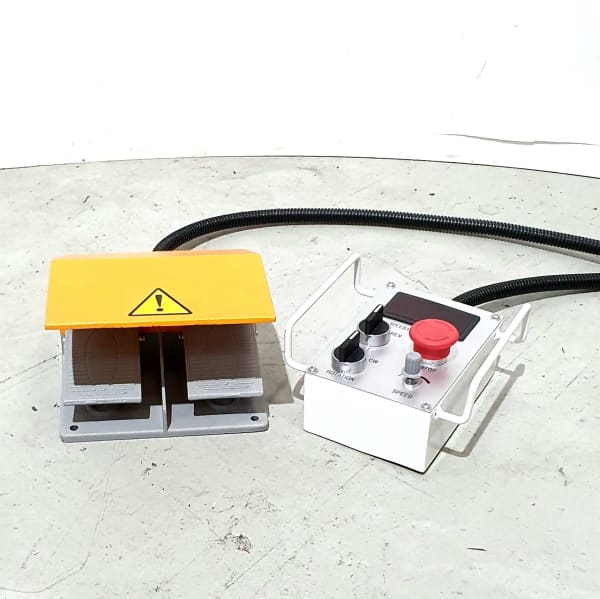

WELDMAX POSITIONER 600KG INC CONTROL BOX & FOOT PEDAL
by Weldmax
Part No: WMXPT-600
WELDMAX POSITIONER 600KG INCUDING CONTROL BOX & FOOT PEDAL
Description:
• For annular welding, cutting, polishing and assembly
• Easy to set up a small welding center equipped with quick chuck, torch holder and roller supports.
• DC infinitely variable speed control system.
• Time relay is equipped for auto welding.
• High frequency protection on electric box.
• Compact and robust design, easy to operate.
Technial Details
- Horizontal Load: 600kg
- Vertical Load: 300kg
- Rotation Speedy (RPM): 0.10 - 1.0
- Tilting Range: 90°
- Tilting Diameter: 600mm
- Table Centre Hole: Nil
- Voltage: 415V
- Hertz: 50Hz
- Phase: 3
- Tilting Adjustment: Electric
- Table Height (horizontal): 755mm
