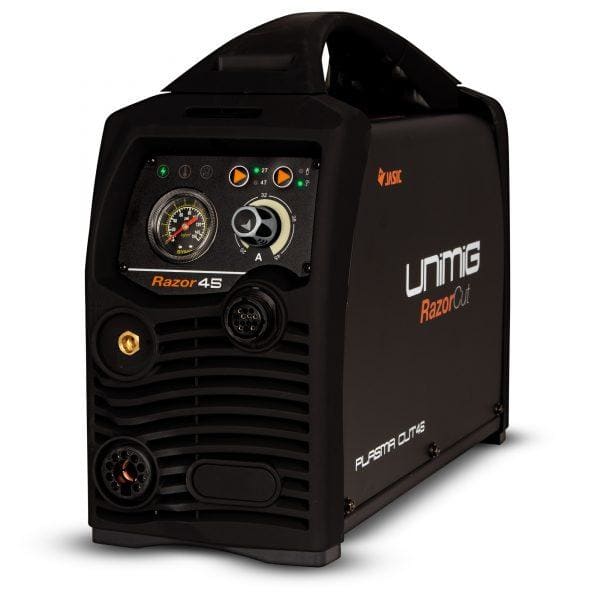

UNIMIG RAZORCUT45

The UNIMIG RAZORCUT45 is a highly efficient and versatile plasma cutting machine designed for professional and industrial use. It is known for its powerful cutting capabilities, precision, and user-friendly design, making it suitable for a wide range of metalworking tasks. Below is a detailed description of its key features and specifications:

Key Features:

1. Cutting Capacity:

   • The UNIMIG RAZORCUT45 is capable of cutting various conductive metals, including steel, stainless steel, aluminum, brass, and copper.
   • It has a clean-cut capacity of up to 16mm on mild steel, while its severance capacity extends up to 25mm for thicker materials, making it ideal for both light and medium-duty applications.

2. Inverter Technology:

   • Powered by Inverter IGBT Technology, the machine offers a more efficient and stable cutting experience with reduced power consumption. This also enhances portability due to its lightweight construction compared to older transformer-based models.

3. Pilot Arc Ignition:

   • The pilot arc feature allows for easier and more efficient cutting of painted, rusty, or expanded metals without the need for direct contact with the surface, ensuring longer consumable life and smoother cuts.

4. User Interface:

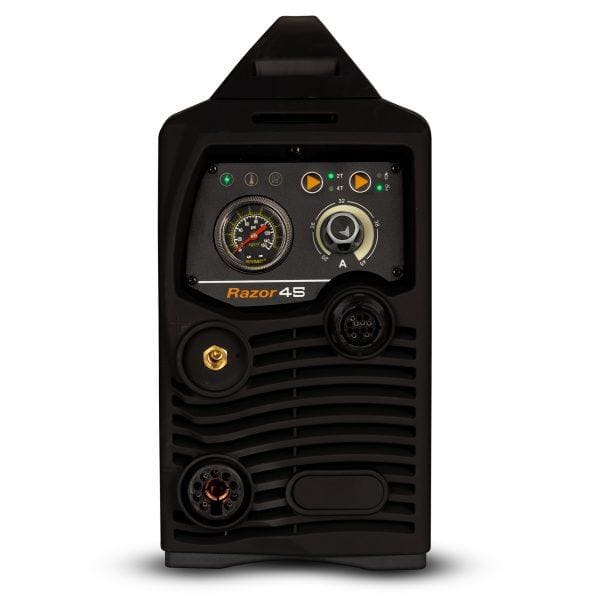

   • It comes with a digital display and easy-to-use control panel, enabling operators to adjust the cutting parameters with precision. This feature enhances accuracy and adaptability to different cutting conditions.

5. Compressed Air Operation:

   • The machine operates on compressed air, which eliminates the need for hazardous gases and ensures a safer work environment. It requires an air pressure range of 4.5–5.0 bar to function optimally.

6. Portable and Compact Design:

   • Despite its powerful performance, the RAZORCUT45 is compact and lightweight, making it highly portable and suitable for on-site jobs. It weighs approximately 10 kg, making it easy to transport and maneuver.

7. Safety Features:

   • The unit is equipped with thermal overload protection and built-in over-voltage and under-voltage protection to ensure safety and longevity of the machine.
   • It also includes an internal post-flow cooling system, which helps to extend the life of the torch by cooling it down after cutting operations.

8. Torch and Consumables:

   • The machine comes with a RazorCUT 45 torch, designed for comfortable and precise operation. It also supports interchangeable consumables that are easy to replace and maintain, contributing to lower running costs.

9. Duty Cycle:

   • The machine operates at a 30% duty cycle at 45 amps, meaning it can cut continuously for 3 minutes out of a 10-minute cycle at maximum capacity before needing to cool down.

10. Power Input:

    • The RAZORCUT45 runs on a 240V single-phase power supply, making it compatible with standard household and workshop outlets, adding to its convenience and accessibility for a wide range of users.

11. Applications:

    • This plasma cutter is ideal for industries such as automotive repair, fabrication workshops, maintenance, construction, and DIY enthusiasts looking for precision and reliability in metal cutting tasks.

Technical Specifications:

• Input Voltage: 240V
• Cutting Current Range: 20-45 Amps
• Duty Cycle: 30% @ 45 Amps
• Max Cutting Thickness: 25mm (Severance), 16mm (Clean Cut)
• Air Pressure: 4.5 – 5.0 Bar
• Weight: 10 kg
• Dimensions: 450mm x 150mm x 280mm (LxWxH)

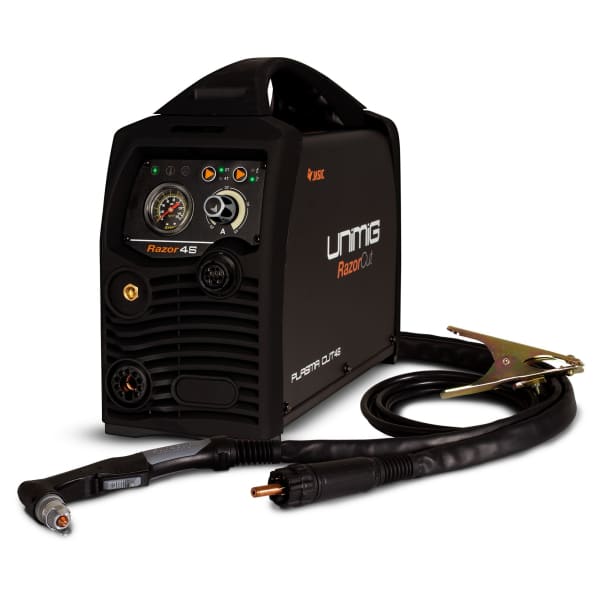

The UNIMIG RazorCut 45 is packaged ready to weld and includes,

• 1 x Razor Cut 45 Power Source
• 1 x 6 metre  SC80 Plasma Torch
• 1 x 4 metre  300 Amp earth clamp
• 1 x Instruction Manual

The UNIMIG RAZORCUT45 plasma cutter is a high-performance, reliable, and easy-to-use cutting tool suitable for a range of applications. Its combination of precision, power, and portability makes it a valuable asset for professionals and hobbyists alike.
