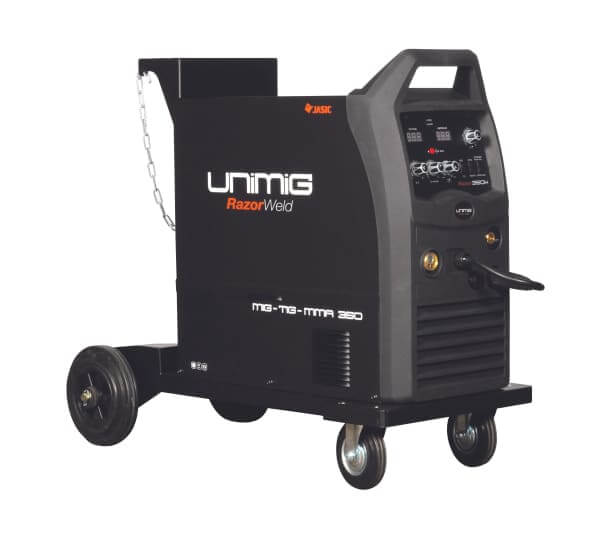

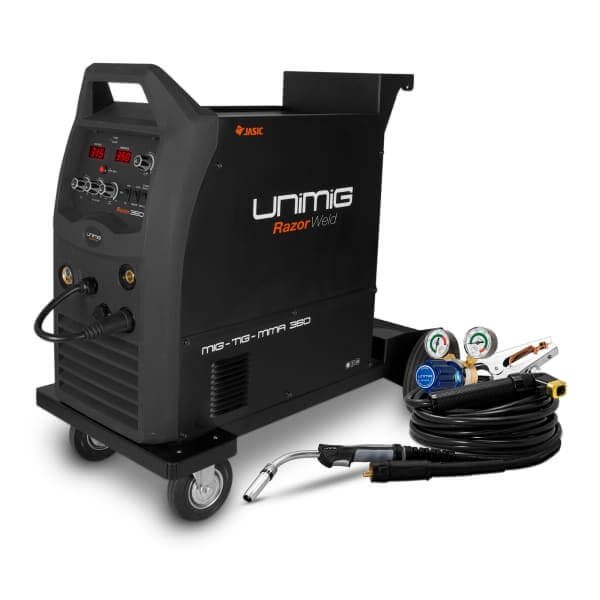

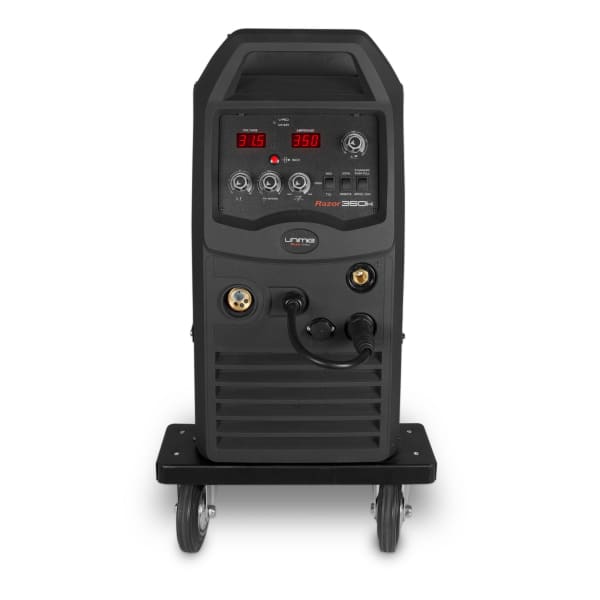

UNIMIG 350 INVERTER WELDER COMPACT
by Unimig
Part No: KUMJR350K-SG
Machine Specifications
- Primary Input Voltage: 415V Three-Phase
- Supply Plug: No Plug Supplied (32 AMP Recommended)
- Rated Input Power (kVA): 15.0
- Leff (A): 13.7
- Rated Output: 50A/16.5V – 350A/31.5V
- No Load Voltage (v): 64
- Protection Class: IP21S
- Insulation Class: F
- Power Factor: 0.75
- Minimum Generator (kVA): 20.0
- Dinse Connector: 35/50
- Standard: AS/NZ60974-1
Mig Specifications
- MIG Welding Current Range: 50 – 350A
- MIG Duty Cycle @ 40°C: 40%@350A
- MIG Wire Size Range: 0.6 – 1.2mm
- MIG Wire Spool Size: 5kg/15kg
- MIG Welding Thickness Range: 1 – 16mm
- Drive Roller Size: 30/22 (x2)
TIG Specifications
- TIG Function Type: DC Lift Arc
- TIG Welding Current Range: 20 – 350A
- TIG Duty Cycle @ 40°C: 40% @ 350A
- TIG Welding Thickness: 2 – 10mm
Stick Specifications
- Stick Welding Current Range: 20 – 350A
- Stick Duty Cycle @ 40°C: 40%@350A
- Stick Electrode Range: 2.5 – 6.0mm
- Stick Welding Thickness Range: 2 – 16mm
Size & Weight
- Dimensions (mm): 900 x 400 x 670
- Weight: 60kg
