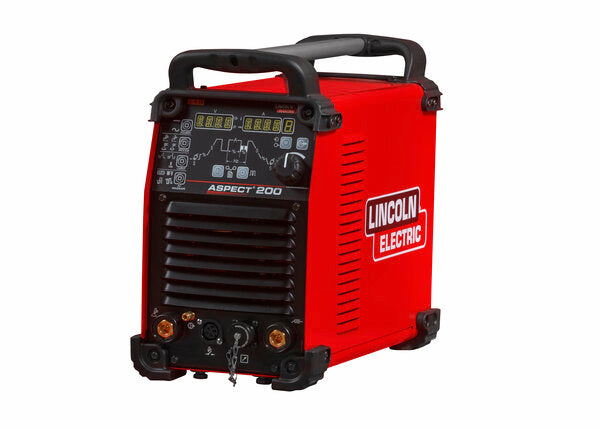

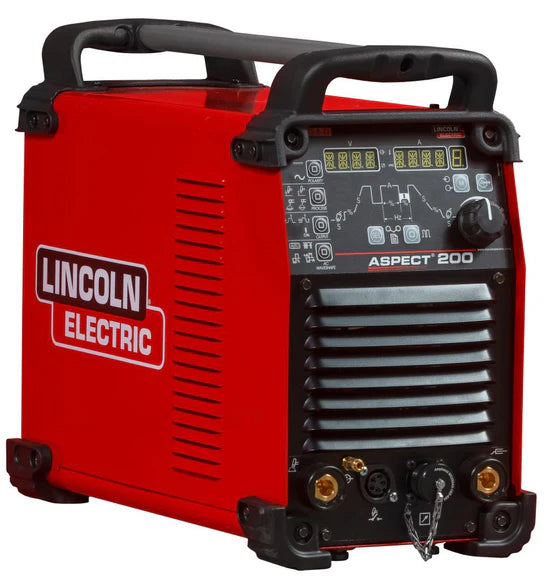

LINCOLN ASPECT 200 AC/DC TIG PACKAGE
by Lincoln
Part No: K14189-2
K14189-2
Top Features
- Superb arc performance
- Advanced TIG AC & DC Functions
- Generator compatible
- Cellulosic capability
- Energy efficient
Input Power
- 115/230/1/50/60
Processes
Stick DC, Stick AC, TIG DC, TIG AC, TIG Lift, TIG HF, TIG PulseSINGLE PHASE AC/DC TIG WELDER
The Aspect® 200 AC/DC TIG welder has advanced TIG AC & DC Functions (Four wave shapes, Pulse, adjustable Balance and Offset) making it ideal for critical AC or DC TIG welding applications. It offers a simple control panel with bright digital display and an innovative control system, from the torch. It can be simply changed to a water cooled unit by adding the COOL ARC® 24 Water Cooler.
- Superb arc performance : excellent HF ignition, stable & fast arc, minimum current 2A
- Advanced TIG AC & DC Functions : Four wave shapes, Pulse, adjustable Balance and Offset, innovative and simple control panel, AC auto setting
- Generator compatible, ideal for site use
- Bright digital display with easy set up buttons, 9 memories, new control from the TIG torch
- Energy efficient : 1 phase buck- boost circuit
- Rugged construction with potted PCB’s, True HD design
- Cellulosic capability
- Best aluminium welding performance
- 16A plug installed on the supply cable
Specification
- Dimensions ( H x W x D) - 500mm x 246mm x 419mm
- Net Weight - 23KG
- Input Current - 16A
- Input Hertz - 50/60 Hz
- Input Power - 115/230/1/50 - 60Hz (+/- 15%)
- Input Phase - 1ph
- Mode Icon - AC/DC
- Rated Output - 200A@35% 130A@100%
