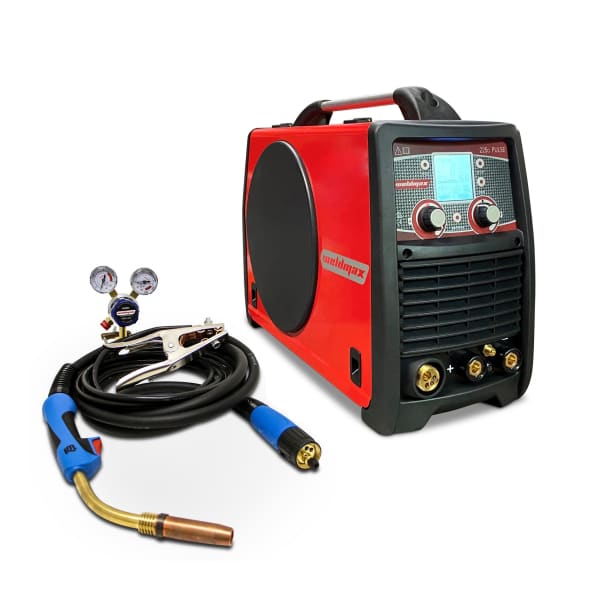

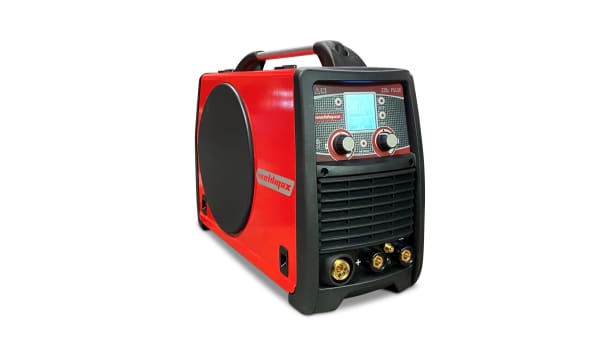

WELDMAX 225C PULSE MIG/TIG/MMA INVERTER

QUICK FEATURES:

• Integrated 4 wheel drive wire feeder
• Portable with an option to add a trolley with gas bottle carrier
• Outstanding precision control
• Digital welding-process adjustment
• Superb welding properties
• MIG brazing of galvanised sheets
• MIG pulsed-arc - a perfect match for Aluminium and Stainless
• TIG standard or Pulsed arc
• Synergic programs
• TIG and Electrode welding (VRD)
• Easy operation
• Digital display for amps, volts, material thickness, wire feed speed, arc length, etc
• Continuous power adjustment is possible while welding
• Job/memory mode
• Thermostatic fan
• 2T / 4T trigger functions
• 240V single phase input power required

SPECIFICATIONS

• 600 x 255 x 480 mm
• Weight: 27.4kg

Duty Cycle Rating

• 200 Amps @ 35%
• 140 Amps @ 100%

The Weldmax 225c PULSE is the answer when welding aluminium, steel, stainless and CrNi using 240volt power. For those who build boats, trailers, tanks or are in the field, the Weldmax 225c inverter is lightweight and can be used either manually or utilise the pre-programmed settings that allow very fast set up and perfect operation the welding arc. With a large digital display - this intuitive machine is set to impress the best fabricators, sheet metals workers, boilermakers and all the boat builders.

Call us now for a free demonstration to prove it for yourself....they are manufactured in Italy under strict European regulations to world-class standards and come standard with a 2year warranty for complete peace of mind. Its simplicity and versatility make it ideal for use in body shops or maintenance jobs also has already been sold to training and education facilities for students to grasp the whole welding concept.

The Weldmax 225c model is highly mobile and accepts both the 300mm and 200mm wire spools with the option to add an upright trolley with a gas bottle carrier. The Weldmax 220 and 225c Pulse MIGs require a TIG torch with a trigger, no valve is required as the machine has an internal solenoid. Once the trigger is pressed, you just touch the tungsten on the workpiece to activate the Lift-Arc ignition. Upon completion of the weld, release the trigger and slope down will activate or the weld will just stop if slope down is not turned on.

To request a free onsite demonstration on this product, please contact us
