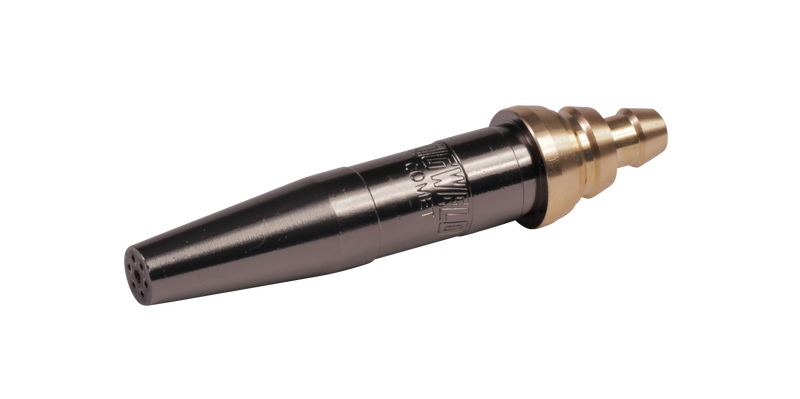

CUTTING TIP 51 102 LOW SPEED ACET 5-10MM #0

CIGWELD has a long established relationship with Koike Senso in Japan. Koike has developed a world-wide reputation as a leading manufacturer of gas cutting machines. Much of this reputation stems from their ability to manufacture cutting nozzles of the highest quality specifically for use with cutting machines, for example koike high speed cutting nozzles are a divergent type with a stainless steel insert screwed into the tip end of the cutting oxygen port. This maintains a constant high quality cutting performance that also improves nozzle life up to 5 times that of a conventional nozzle.

Features

• Small Kerf
• Limited under slag
• Limited upper edge melt
• Limited upper edge slag
• Cutting operaqtion with high speed
• Steady and safe cutting operation
• Cutting operation with a small amount of gas
• High speed divergent nozzles with stainless steel insert for imporved performance and nozzle life


Specifications

• Gas Type: Oxy/LPG
• Plate Thickness (mm): 5-10
• Tip No. Size 0
• Cutting Speed (mm): 660-550
• Cutting Pressure (oxy/kPa:): 200
• Pre-heat Pressure (oxy kPa): 200
• Fuel kPa: 20
• Kerf Width (mm): 1.3
